Cut Irrigation Costs to Zero: Why FRECON PV Solar Pump Inverters Are the Smart Choice for MENA Agriculture
Across Morocco and the broader MENA region, agricultural operations face extreme seasonal challenges: rising diesel fuel prices, harsh desert temperatures, and unpredictable power grids. Irrigation is often a farmer’s single largest operational expense.
While transitioning to solar-powered water pumping eliminates fuel bills entirely, standard industrial Variable Frequency Drives (VFDs) frequently fail under fluctuating solar light. FRECON’s dedicated PV Series Solar Pump Inverters are specifically engineered to convert variable sunlight into smooth, continuous water flow—offering unmatched durability, battery-free operation, and intelligent pump protection for regional agriculture.
1. Why Standard Industrial VFDs Fail on Solar (And Why the PV Series Succeeds)
A common mistake in regional solar pumping installations is using a standard industrial AC drive. Standard VFDs expect fixed grid voltage; when clouds pass or early morning haze reduces sunlight, a standard drive experiences DC bus voltage drops and immediately trips on a fault code.
FRECON PV Series drives are built around dedicated solar logic:
Automatic Frequency Adjustment: The internal Maximum Power Point Tracking (MPPT) software continually scans solar array output. When sunlight dips, the inverter instantly adjusts output frequency and motor speed rather than tripping, keeping water flowing even on overcast days.
Battery-Free Autonomous Operation: Runs directly off PV solar arrays without requiring expensive, high maintenance storage batteries.
Hybrid AC/DC Power Switching: Features dual-input terminals allowing seamless connection to an auxiliary diesel generator or grid power during peak night-pumping requirements.
Smart Sleep & Wake Cycles: Automatically initiates pumping at sunrise when DC bus voltage reaches threshold levels and enters sleep mode at dusk.

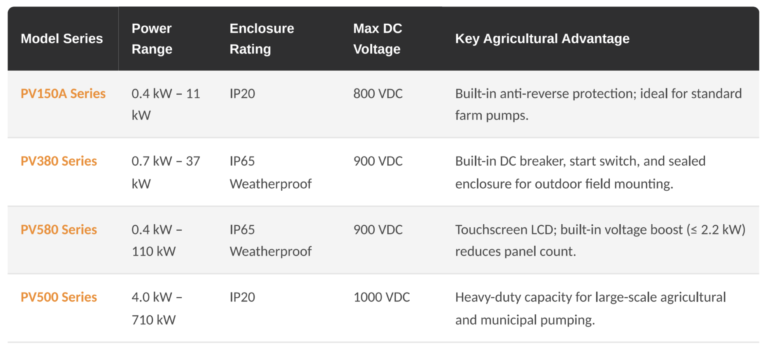

2. A Dedicated PV Series Model for Every Agricultural Application
Whether driving a small shallow-well pump or a heavy-duty deep submersible system, FRECON offers tailored hardware specs across the PV lineup:
3. Engineering Precision: Simplified Sizing & Protection for Installers
For solar engineering support teams, distributors, and installers, FRECON PV inverters streamline installation while minimizing post-commissioning callbacks.
Recommended Array Sizing Rules
To guarantee full rated motor frequency (50 Hz / 60 Hz), FRECON provides precise array matching benchmarks:
1. Total Solar Array Power: Must be at least 1.3 × the pump motor rated power to cover thermal and optical
power losses.
2. Maximum Power Current (Imp): The solar panel array Imp must exceed the rated operating current of the pump motor.
3. Target DC Input Voltages:
– 220V Pump Systems (PV150A): Recommended 310 VDC – 400 VDC (Min 60 VDC, Max 450 VDC).
– 380V Pump Systems (PV150A): Recommended 600 VDC – 750 VDC (Min 230 VDC, Max 800 VDC).
Integrated System Protections
Integrated Anti-Reverse Diode: Prevents destructive current flow back into the PV panels if string polarity is
miswired.
Dry-Run & Water-Level Logic: Configurable terminal inputs (DI1–DI7) connect directly to well water sensors and
elevated tank float switches to prevent pump dry-burn and water overflow.
Immediate Regional Stock & Local Technical Support
Project delays cost farming operations time and money. Local warehouse facilities across Morocco and the MENA region are fully stocked with FRECON PV Series inverters, ready for immediate dispatch with zero international shipping delays.
Whether you are a farm owner looking to reduce operational energy costs to zero, an engineer seeking reliable field equipment, or a solar distributor aiming to grow your sales inventory, FRECON PV drives deliver proven agricultural performance.
Contact our technical sales team today to request a quote, download panel calculation software, or inquire about local wholesale pricing while stocks last.
